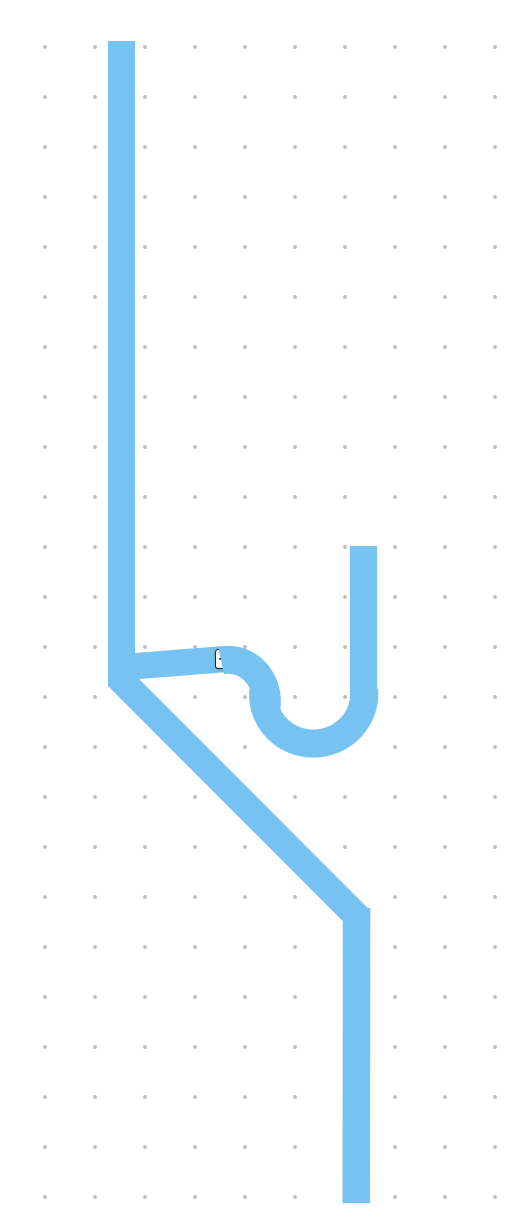

I’m not a plumber either so I could be completely wrong, but I believe it’s a minimum viable vent diagram.
What do you think is missing?
I basically have a drain with no vent or p-trap or anything and I’m hoping this would be a viable fix (you could imagine the right “column” as a straight line and that would be the current configuration)
I’m not an expert so was hoping a little discussion here would encourage one to speak up. However I thought I remembered a thread discussing some vertical distance above and below where the drain horizontal joins the vent, however I didn’t find anything like that.
This site has some min-max measurements that may be useful to check against
Maybe it’s because I’m not a plumber, but that diagram doesn’t include any information about your plans.
I’m not a plumber either so I could be completely wrong, but I believe it’s a minimum viable vent diagram.
What do you think is missing?
I basically have a drain with no vent or p-trap or anything and I’m hoping this would be a viable fix (you could imagine the right “column” as a straight line and that would be the current configuration)
I can confidently say: maybe or maybe not. I really think you have too much context in your head and not here
That’s definitely something I’m guilty of from time to time.
Does this help?
* Drawing not to scale
Wow, that giant comb is a really cool feature for a home. It must save so much time getting ready, not having to do that by hand
/s
But yes, thanks. That clarifies what you’re trying to do
I’m not an expert so was hoping a little discussion here would encourage one to speak up. However I thought I remembered a thread discussing some vertical distance above and below where the drain horizontal joins the vent, however I didn’t find anything like that.
This site has some min-max measurements that may be useful to check against
I can’t believe the tool I was using had a Hair pick icon but not a shower head icon 🤣
(Also I thought I hid it better than that…good eye)
More importantly, what will your neighbors say about you showering in your front doorway in view of everyone?
